A WHOLE NEW CLASS OF BIKE
A WHoLE NEW BUNCH OF FUN
REDEFINES WHAT A PERFORMANCE HARDTAIL IS CAPABLE OF...
The all new RC627 lets you break into tech-gnar and enduro territory usually reserved for full sus rigs. From full gas trail centre to fully committed big adventure days and everything in-between the RC627 can handle it all.
A short tucked in rear keeps it playful when you need to manual, pop and play whilst it's supreme stability comes from a longer than average front centre and reach. Out front a slack 65 degree head angle gives you all the confidence you'll need descending and a steeper - shorter seat tube lets you weight the front end on steep tech' climbs and create more room in the cockpit for longer travel droppers.
Outback the RC627 features graceful curves and tucks to the chain and seat stays to give that extra clearance for wider section 2.8” tyres, although this hardtail is't fussed if you would like to stick whippet 2.2" tyres on, whatever is your thing there's clearance for all. We've kept the full rear rack and mudguard mounts for those who fancy a bit of back country touring and need to load up the panniers.

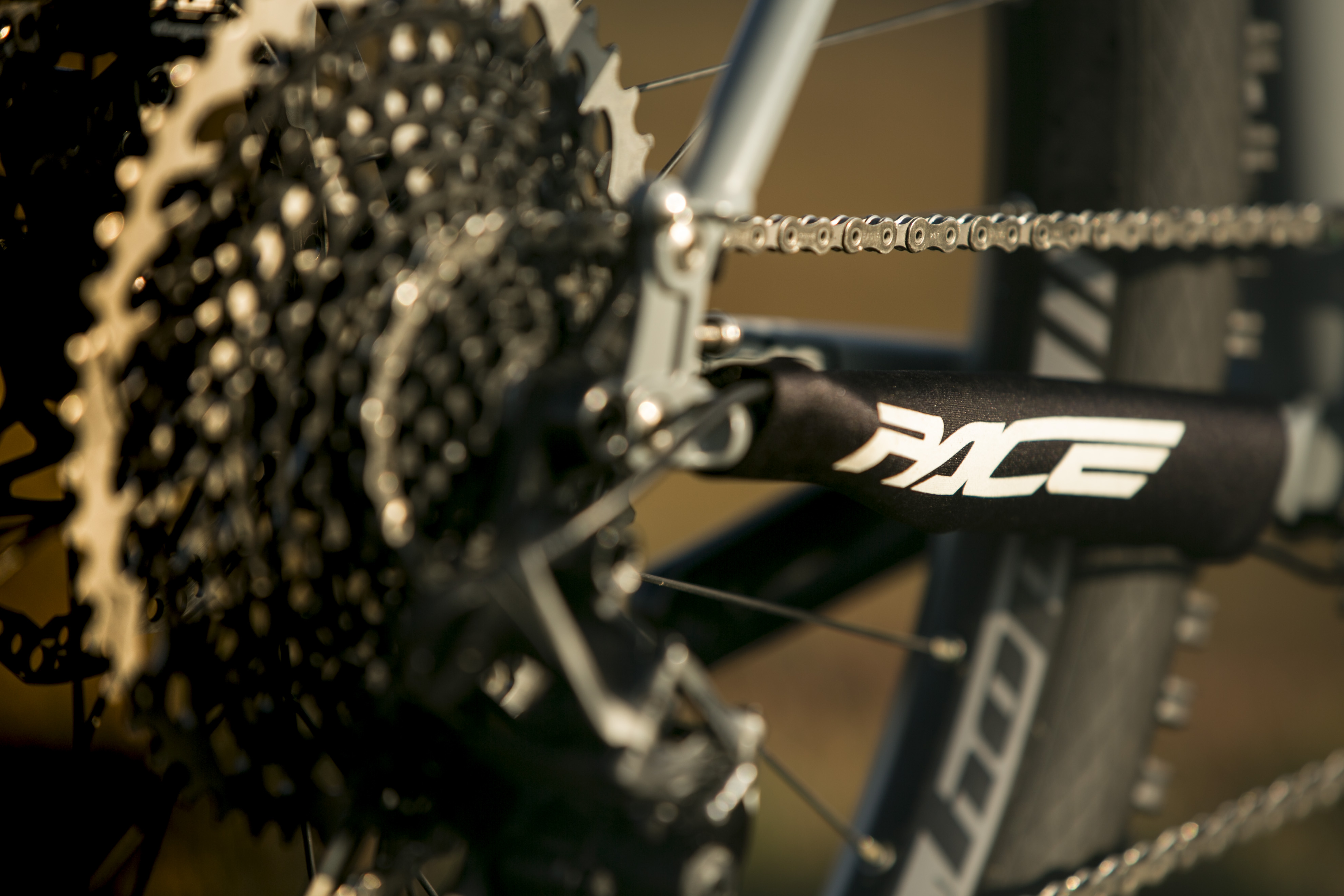

All of our new models feature the latest boosted rear frame spacing so you have clearance for larger section tyres, a stronger rear wheel and an efficient chainline. It has a 12mm Thru Axle and our own original Slideout system so you can tweak the wheelbase for handling and setup by up to 13mm.
Slideouts have been a unique feature on our steel frames for years now and they're a proven way to give you the convenience of replaceable mounts with built in adjustment. CNC machined from 6000 series aluminium this is a well proven design that actually offers more than first meets the eye. The slide outs both bolt into the frame using our unique stainless steel 'T-NUTS' and should be run in full forward position to bring out the most active and urgent riding quality of the bike. Should you want to move the slideout rearward to increase wheelbase or run the bike as a singlespeed then the disc-side has an adjuster screw that penetrates right inside the slide out helping to counteract the rotational load under braking. Meanwhile the drive-side has a push screw design to hold the slideout back as the chain tries to drag it forward. All clever stuff explained in more detail inside the manual.
Like all of our hardtails the RC627 is engineered from high quality British Chromo tube to give that wonderful spring to your ride. No other material can quite match these characteristics and the phrase 'steel is real' is as true today as it ever was. Of course you'll be riding your tough and durable RC627 for years to come given the amazing fatigue properties of steel. We've also subtly added gussets to those high load areas like the underside of the head tube, drive side chain stay and beneath the seat tube clamp to provide that additional bit of re-assurance.

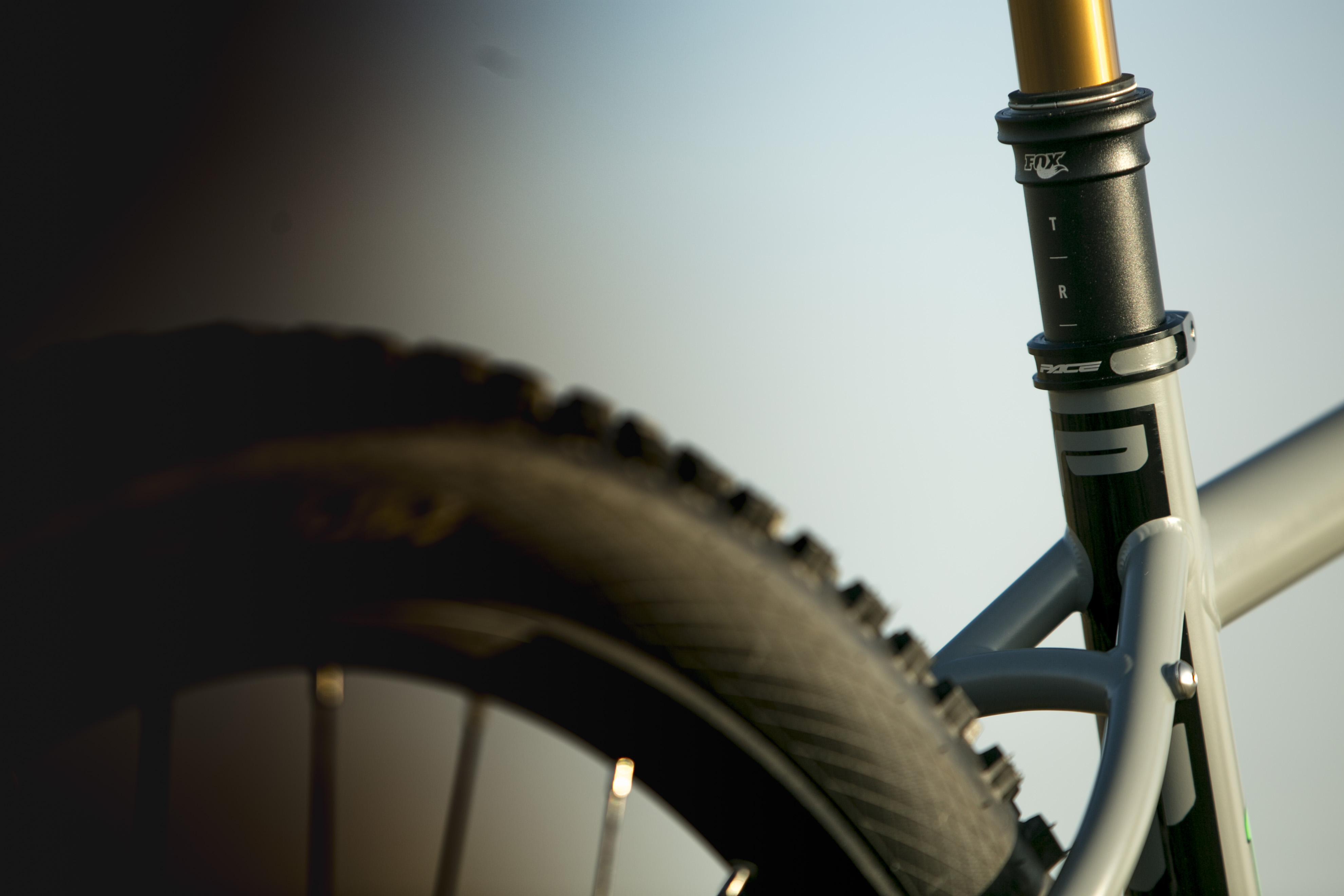

Internal routing through the seattube also has reinforcement where the dropper post hose/cable exits and we’ve sealed this with a neat and tidy custom made grommet (we know you love to see attention to detail on a Pace).
You also get ISCG tabs as standard so should you want to fit a chain retention devise or bash plate you’re good to go.

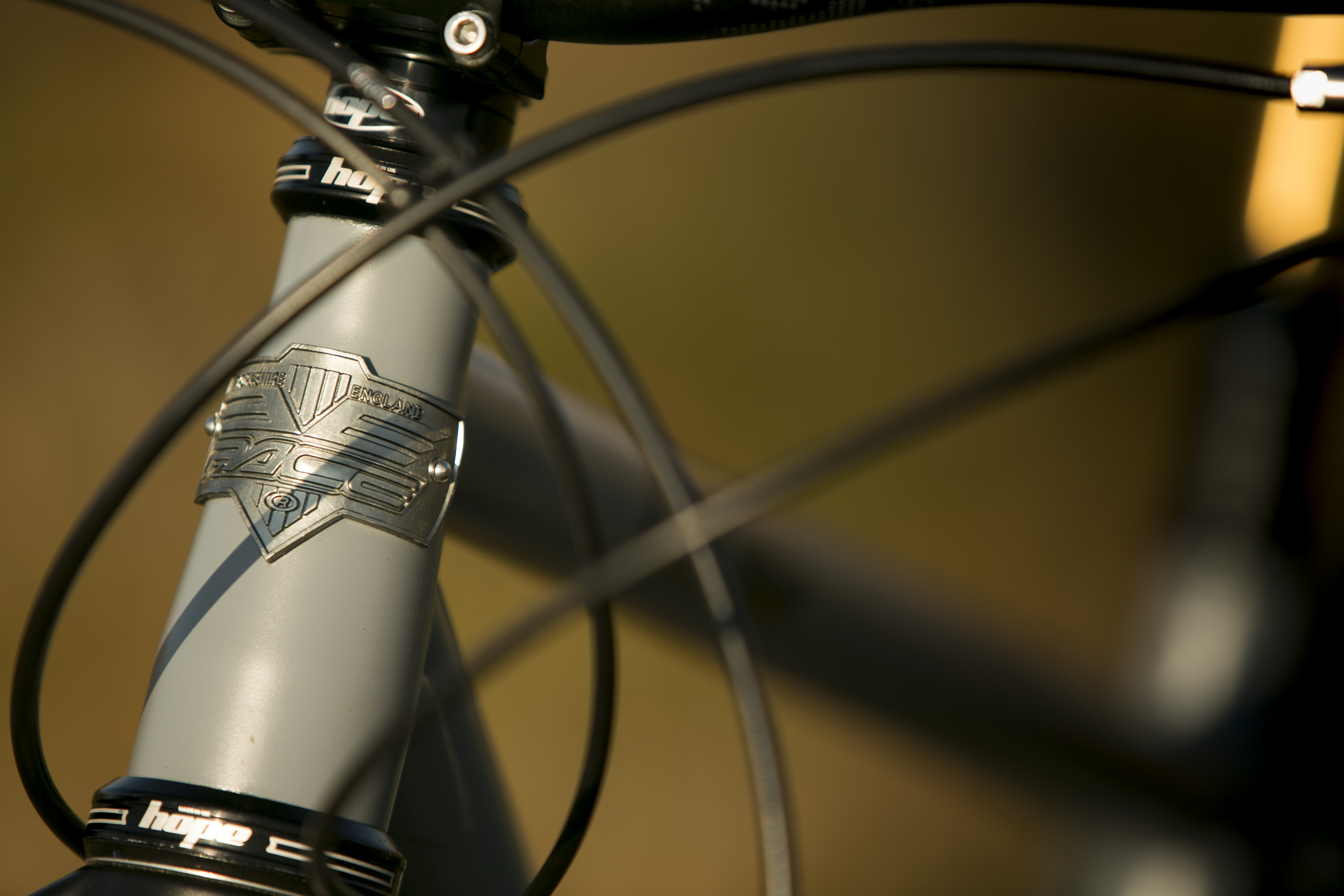

Up front the RC627 will happily run 130 to 150mm travel forks in its elegant tapered headtube and with all hoses and cables beneath the BB another obvious plus to the RC627 are its clean lines and mean stance.
No quirky design or materials here thanks just solid design and engineering.
- Made with: Reynolds 853 Steel
- Wheelsize: Any 27.5" wheel from 2.2 up to 2.8"
- Fork Travel: 130-150mm
- Designed for: Slaying

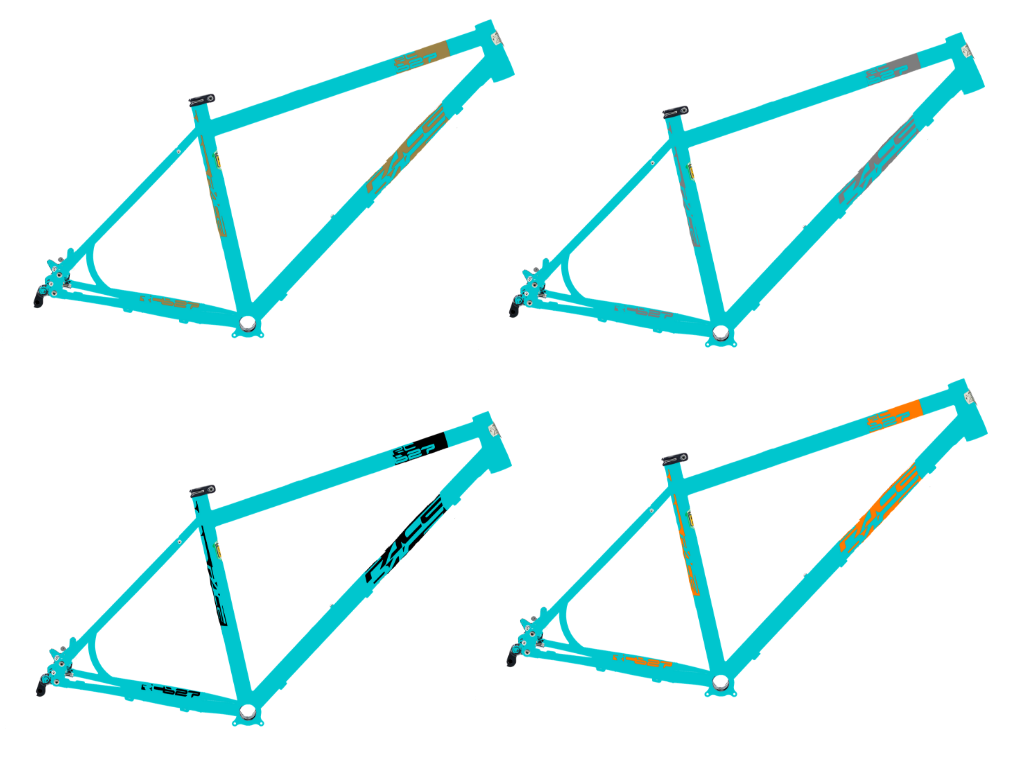

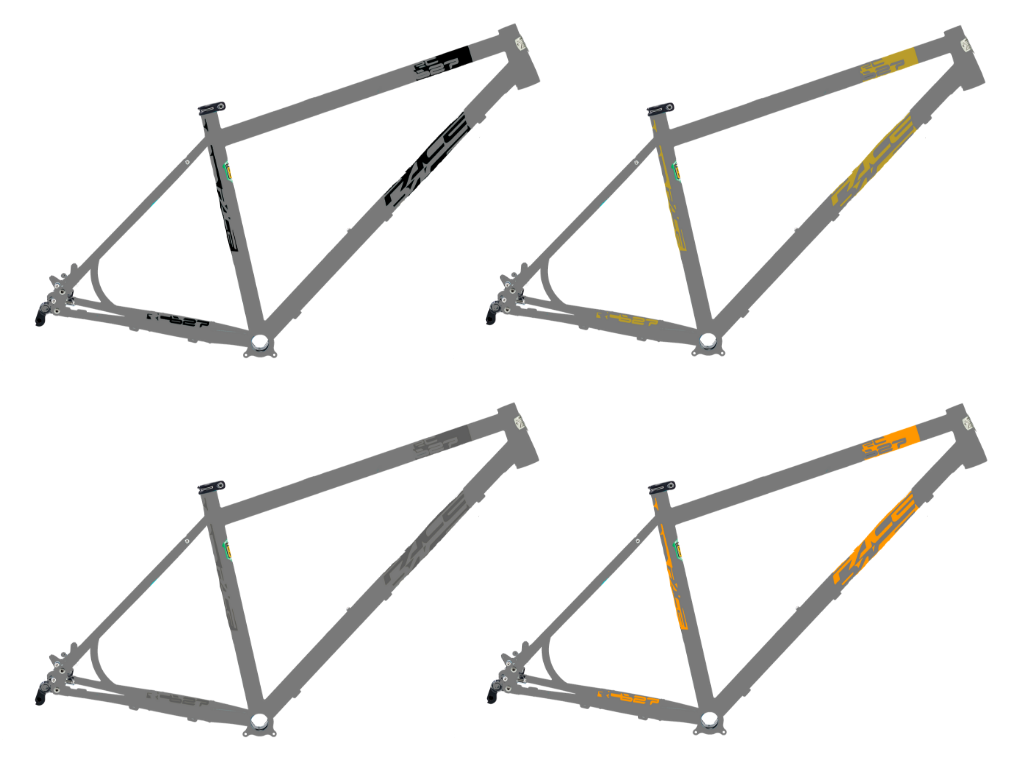

CHOOSE FROM OUR 2 FRAME COLOURS AND 4 STICKER COLOURS. OR IF YOU'RE FEELING FANCY YOU CAN CUSTOM PAINT YOUR OWN.
ATTENTION TO DETAIL
To protect your frame for the long haul each frame has a corrosion protective ‘ED’ black coating beneath the twin-pack epoxy and tough final lacquer coating and we've chosen to fit the decals on top of the clear coat rather than under the lacquer so you can easily change the decal set and choose a different colour anytime in the future.
YOU HAVE FOUR OPTIONS...
SCROLL DOWN THE PAGE TO VIEW THE 3 VARIATIONS
Fancy building your own Pace or getting your local bike shop to help? Our frames includes DT RWS rear thru axle, Pace CNC machined seat clamp & Pace neoprene chainstay protector. If you are in need of any extra parts like a headset or fork, just give us a call.
Choosing the right build for your Pace brings out it’s best performance and character plus it reflects your needs and personality too. So we offer choice of 2 Build Kits an A (plus an optional Hope upgrade) or B build. We work with all the best brands and only use the latest model year parts. See builds below.
Do you want to create your own dream Pace? Contact our custom build girl Sophie who know her stuff when it comes to bike builds. Fill out the form below or email email@example.com. We guarantee to get you the best spec for your money.
GREY RC627 OUT OF STOCK. PRE-ORDER HERE

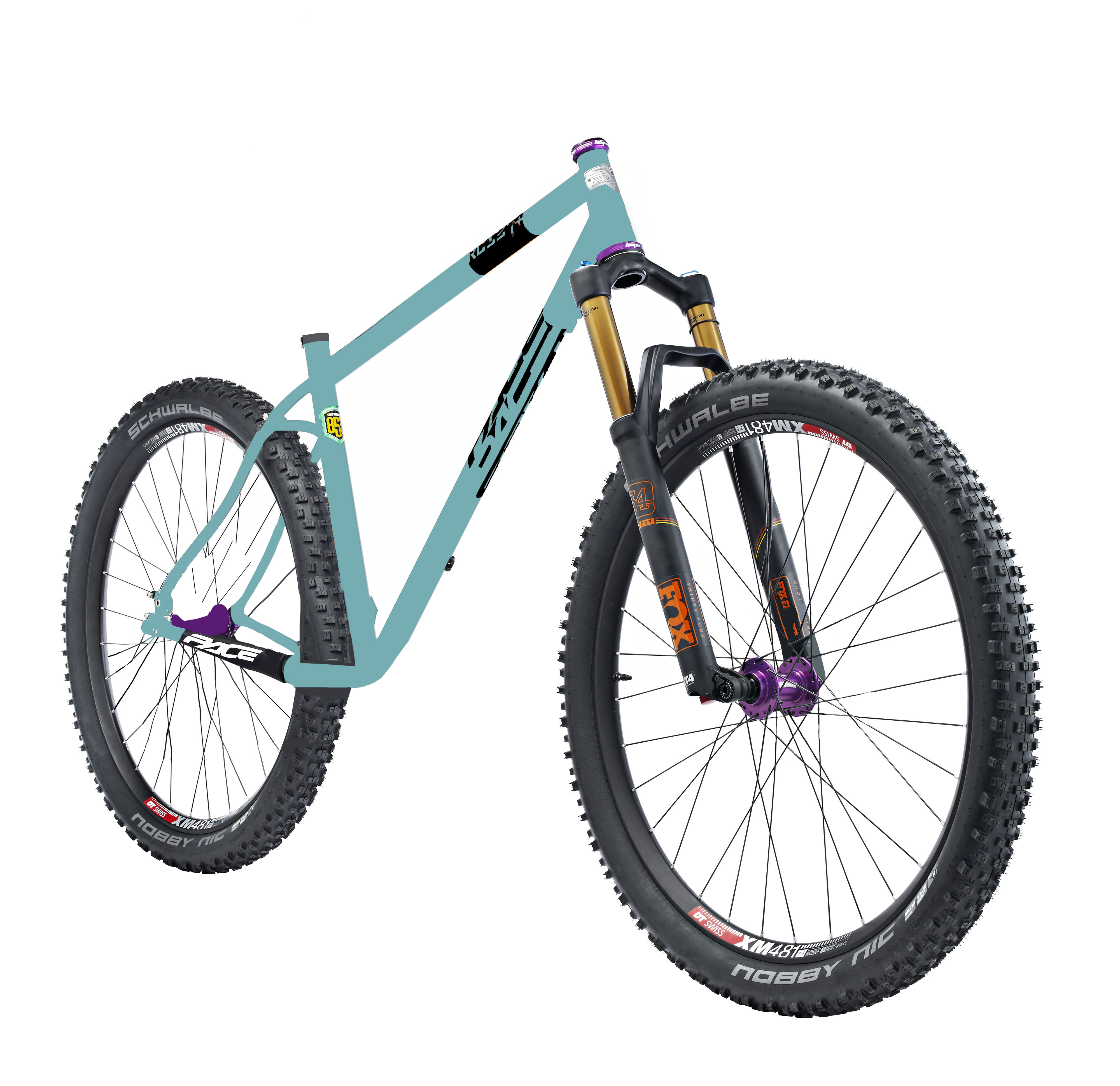

ROLLING CHASSIS FOR YOU?
ALL PRODUCTS USED ARE THE VERY LATEST 2019 MODELS. Pictures shown are for example purposes, specifications are listed in description
Rolling Chassis A for RC627
Rolling Chassis B for RC627
CLICK ON THE BUILDS BELOW TO SEE THE SPECIFICATION. ALL PRODUCTS USED ARE THE VERY LATEST 2019 MODELS.
FORK: PIKE B 140 CHARGER 2 27.5"
REAR DERAILLEUR: SRAM GX EAGLE 1X12
SHIFTERS: SRAM GX EAGLE
BOTTOM BRACKET: SRAM DUB
CHAINSET: SRAM GX EAGLE 1X12 10-50 WITH GX 175MM CRANKSET
CHAIN: SRAM GX EAGLE
BRAKES: GUIDE R
BRAKE ROTORS: 35 BIKES 180 FRONT & REAR
HEADSET: HOPE (COLOUR CHOICE)
SADDLE: WTB SILVERADO PRO
BARS: RENTHAL 35MM CARBON BLACK
GRIPS: HOPE (COLOUR CHOICE)
WHEELSET: HOPE HOOP 27.5" 35W SRAM DRIVER
TYRES: MAXXIS HIGH ROLLER 2 3C 2.4 MAXX TERRA EXO/TR
TUBE: TUBELESS INCLUDING PEATY'S TAPE AND VALVES
SEATPOST: ROCKSHOX REVERB 125, 150 OR 170MM DROP
STEM:: HOPE AM (COLOUR CHOICE)
MUDGUARD: PACE MUDGUARD - COLOUR CHOICE
FORK: ROCKSHOX REVELATION B 140 DEBONAIR
REAR DERAILLEUR: SRAM NX EAGLE 1X12
SHIFTERS: SRAM NX EAGLE
CHAINSET: SRAM NX EAGLE 1X12 11-50
CHAIN: SRAM NX EAGLE
BRAKES: LEVEL T
BRAKE ROTORS: 35 BIKES 180 FRONT & 160 REAR
HEADSET: HOPE (COLOUR CHOICE)
SADDLE: WTB COMP
BARS: RACEFACE RESPOND
GRIPS: WTB WAFFLE GRIPS
WHEELSET: HOPE ENDURO 27.5" 35W RIM WITH PRO 4 BOOSTED HUBS. (COLOUR CHOICE)
TYRES: MAXXIS HIGH ROLLER 2 36 27.5X2.4. MAXX TERRA EXO/TR
SEATPOST: ROCKSHOX REVERB STEALTH 125, 150 OR 170MM DROP.
STEM: RACEFACE RESPOND 31.8
MUDGUARD: PACE MUDGUARD - CHOOSE COLOUR
SHOP COMPLETE RC627 BIKES
Complete Bike Build A for RC627
Hope Upgrade Package. Only Available With Bike Build A.
Complete Bike Build B for RC627
OR DESIGN YOUR OWN DREAM BIKE?
FANCY YOUR DREAM BIKE?
COMPLETE THIS FORM OR DROP AN
EMAIL TO SOPHIE@PACECYCLES.COM
GEOMETRY & SIZING
|SEAT TUBE LENGTH||A||420||450||480|
|SEAT TUBE ANGLE||B||74.5||74.5||74.5|
|TOP TUBE EFFECTIVE (HORIZONTAL)||E||635||655||675|
|CHAIN STAY LENGTH (ADJUSTABLE + 13MM)||F||425||425||425|
|BOTTOM BRACKET HEIGHT/DROP 27.5" WHEELS||G||300/55.5||300/55.5||300/55.5|
|STANDOVER (VERTICALLY THROUGH BB)||H||727||750||772|
Designing the character of a bike involves taking every element from material to construction
techniques into account but geometry is certainly the hot topic right now.
Can I fit a front mech? Yep - the RC627 has all cable stops and guides included.
What is the maximum tyre size? 27.5x 2.8
What routing does the seatpost have? Internal routing
Can I choose my own sticker colour? You can choose from 4 colour options (black, orange, grey or kashima gold) or choose your own colour for an additional £25.
Do I have to apply my own stickers? No we do that for you.
Can I choose my own frame colour? Yes you can, please choose a RAL colour online. It will be £115 extra unless we need to order in esepcially than it will be £149.99.
What is the wheelsize? 27.5" Wheel.
What travel is the fork?: Tapered steerer 130 to 150mm.
Colour: Matt Primer or Gloss Lagoon
Warranty: 2 years
Sizes: M, L & XL (S coming soon)
Max Tyre Size: Maximum 2.8 up to and including a 35 inner width rim
Fork: Tapered steerer 130 to 150mm. 140mm Rockshox Pike is standard spec' for full bike build
Seatpost Diameter: 31.6MM
Seatpost Clamp: Pace CNC Alloy anodised black. 34.9 bolt type
Through Axle: DT Swiss RWS MTB Alloy
BB: BSA Thread for 2-piece BBs. 73mm shell
Headset: Traditional exterior 1 1/8" upper cup. 1 1/2" lower cup. SHIS upper EC34/28.6. SHIS lower cup: EC44/40
Rear Wheels: 148x12mm Boost.
Cabling: Designed for full length outer cables, all underslung so its easy to portage, easy on the knees and easy on the eye
Hydraulic Hoses: Brake and dropper seatpost all external so its easy to maintain
Chain Mount Guide: ISCG-05
Accessory Mounts: Rack & Mudguard mounting eyes
Weight Of Frames: M - 2.65kg, L - 2.70kg, XL - 2.75KG
