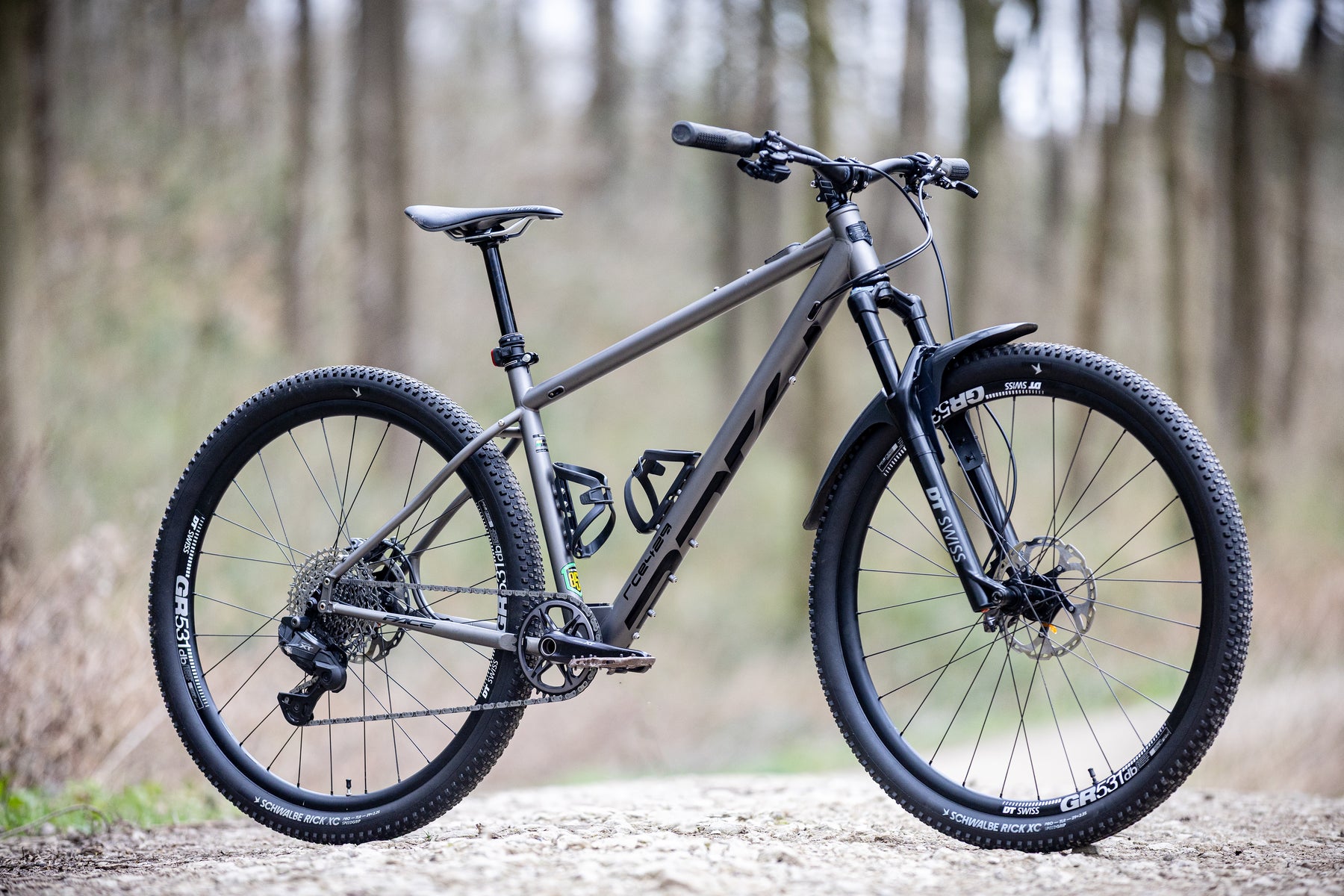

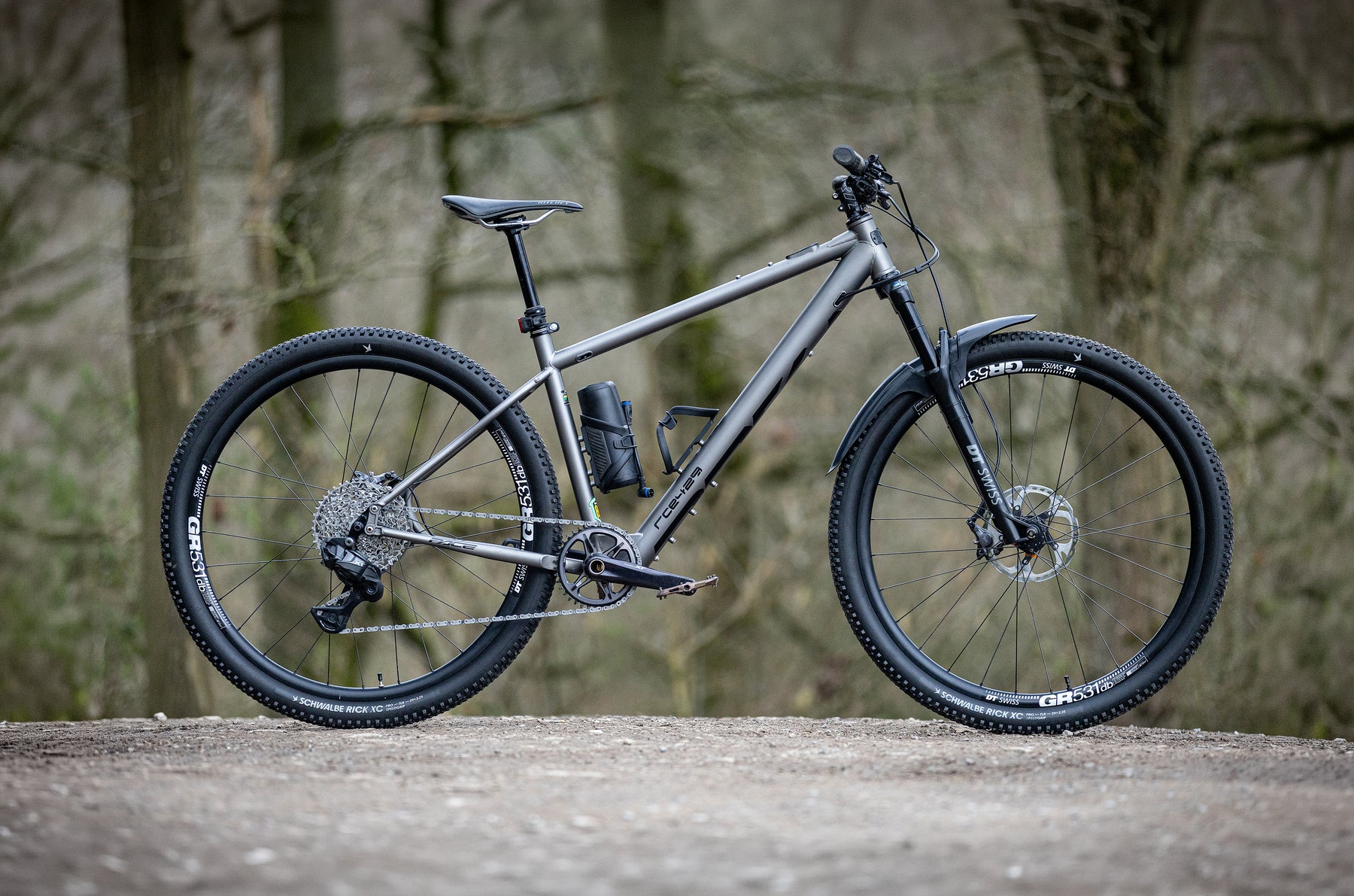

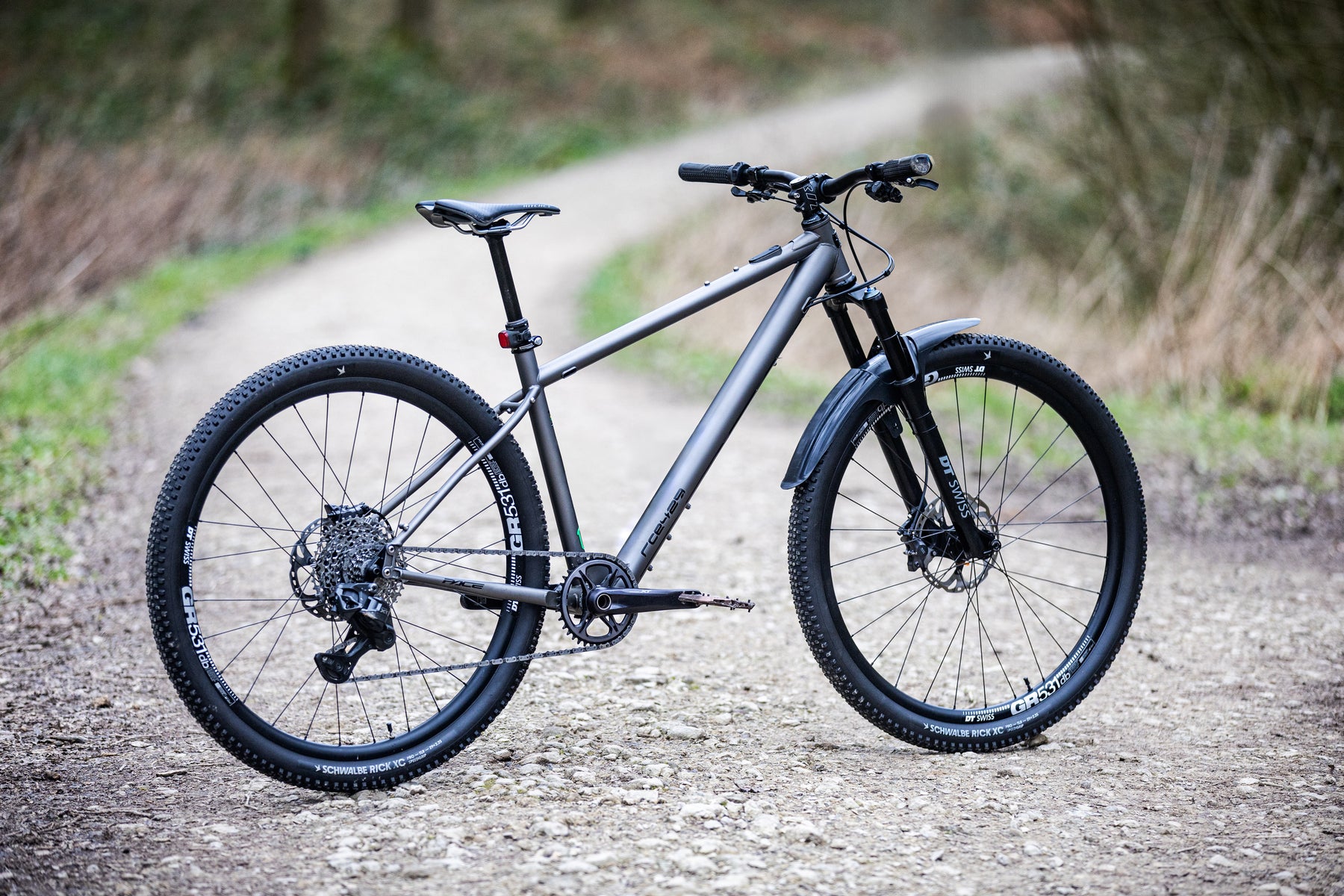

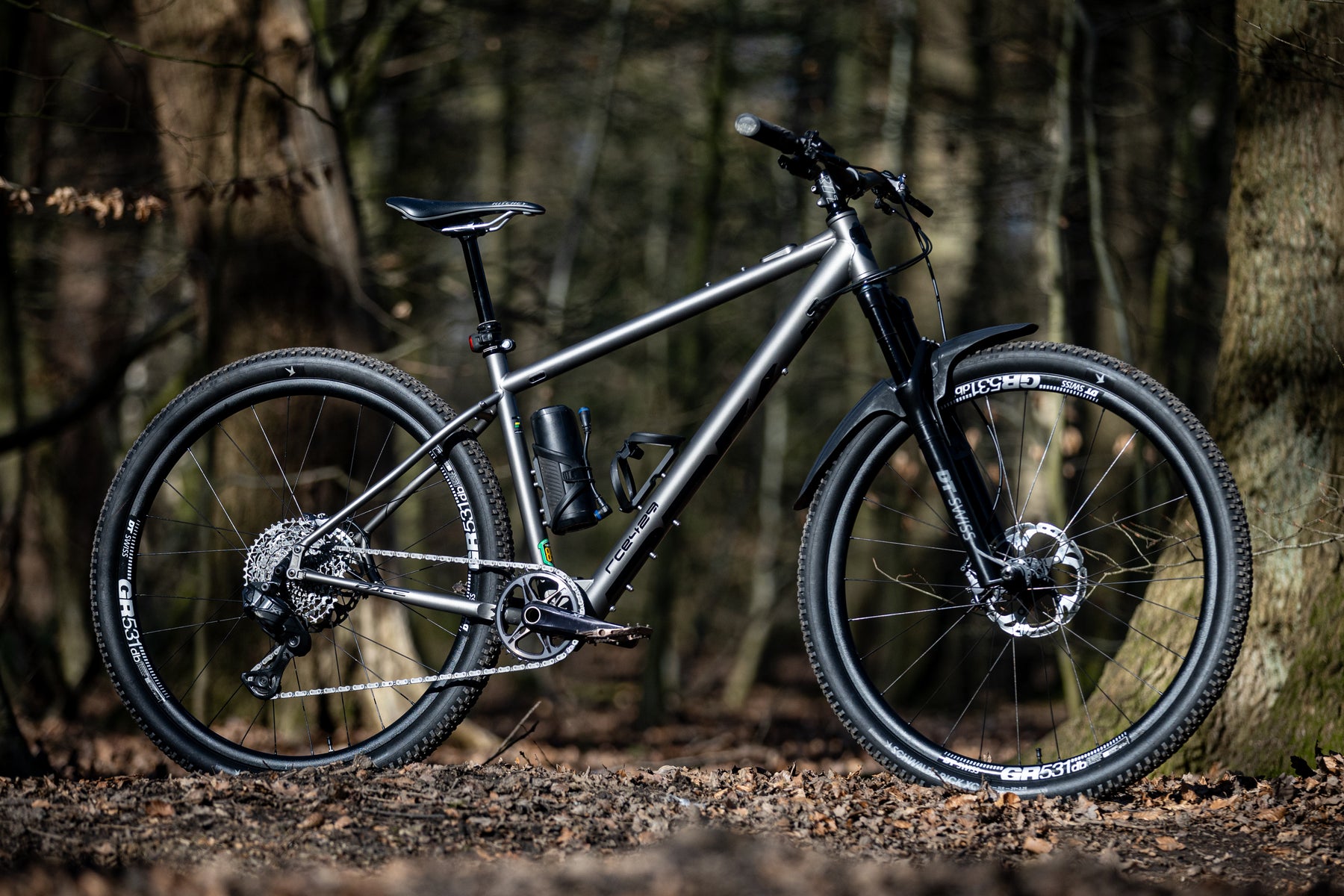

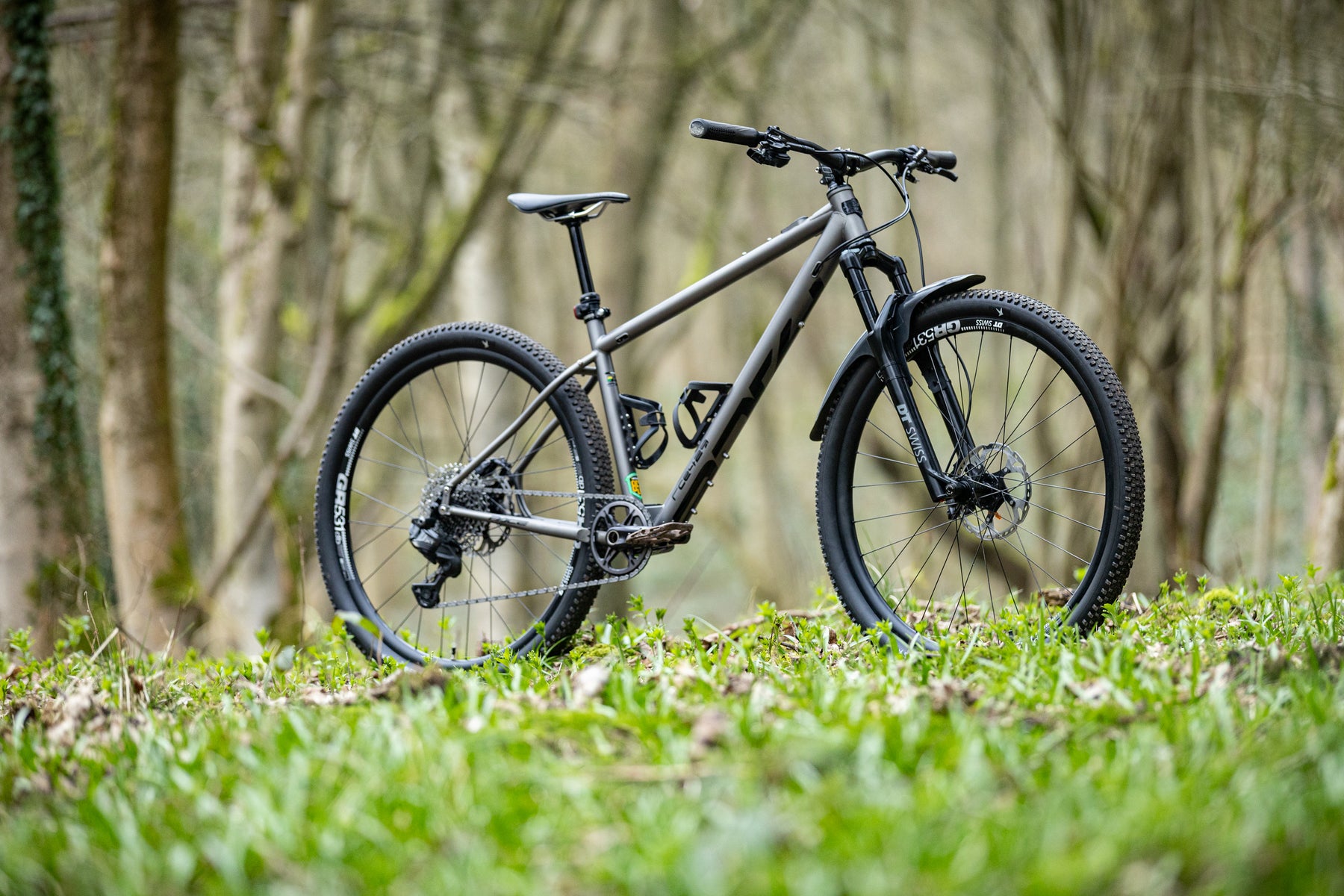

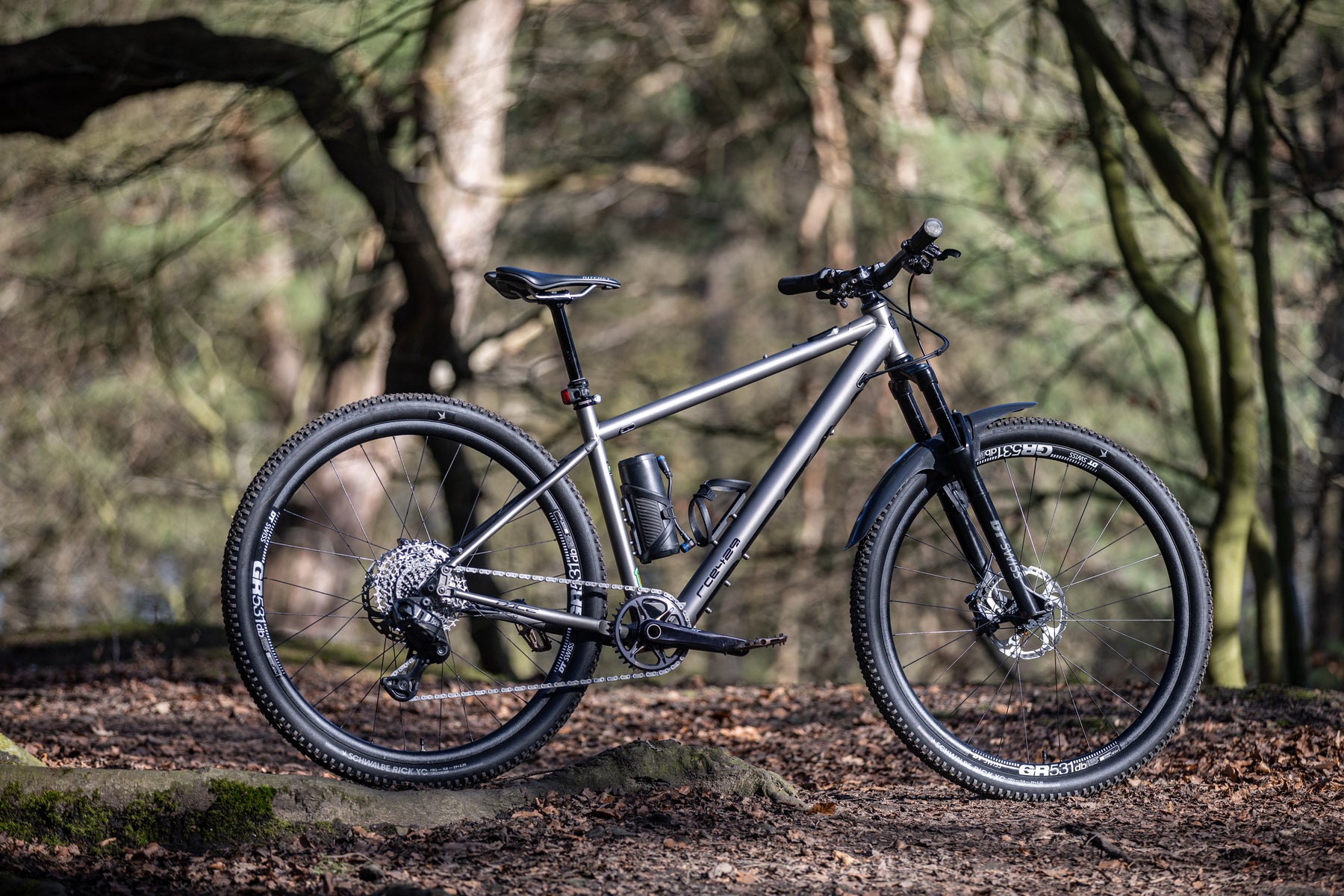

RCE429 Frameset
£2379. Pay 50% £1189.50 deposit to secure your order now. Remaining 50% of £1189.50 plus postage will be due once the frames are with us.
Includes: RCE429 frame, Hope fitted seatclamp, Burgtec Thru axle, Frame pre-assembled with full Mahle X20 system (incl X20 Drive Unit, iX2 battery, IWOC, Speedsensor, X Active Charger). Frameset also comes with with Handmade Blackjack 29" wheelset with black butted spokes, black brass nipples 28 hole, 26mm internal rim width including Blackjack front hub and Mahle Drive system pre-laced into the rear wheel. Alloy bashguard to protect + allow easy removal of battery
-
Delivery: Medium, large and XL due in approximately 4 months
-
Colours: Dark Knight - Black decals
-
Optional MAHLE upgrades: Lightwire / Battery Extender / Connector Cable / Pulsar 1 / Pulsar Mount
- Other upgrades: Invisiframe / Fitted Hope Headset / Pace carbon RC33 rigid fork
-
Payment available through Cyclescheme / Klarna / Paypal Credit / Pay in 3 / Credit or debit card / Bank transfer
-
We can change this spec to what you like - just email info@pacecycles.com or give us a call on +441751477737.
THE DARK HORSE. WILDLY CAPABLE - SUBTLY BUILT - CLASS DEFINING
Reignite your sense of adventure and cast off the constraints of an either/or choice- the Pace RCE429 offers what few others can- dual purpose without compromise.
| Size Chart: Pace RCE429 | |
| Medium |
5'5 - 5'9 / 165.1 cm - 175.3cm |
| Large | 5'10 - 6'1 / 175.3cm - 182.9cm |
| Extra Large | 6'0 - 6'4 / 182.9cm - 193cm |
| Technical Features: Pace RCE429 | |
| 29” asymmetrical 142mm rear. 29" 110mm front | Wheelsize |
|
T47 73mm X 51.8 DIA. STD BSA Threaded (NOTE; BB should have narrow internal tube to clear power cable/s) |
Bottom Bracket |
|

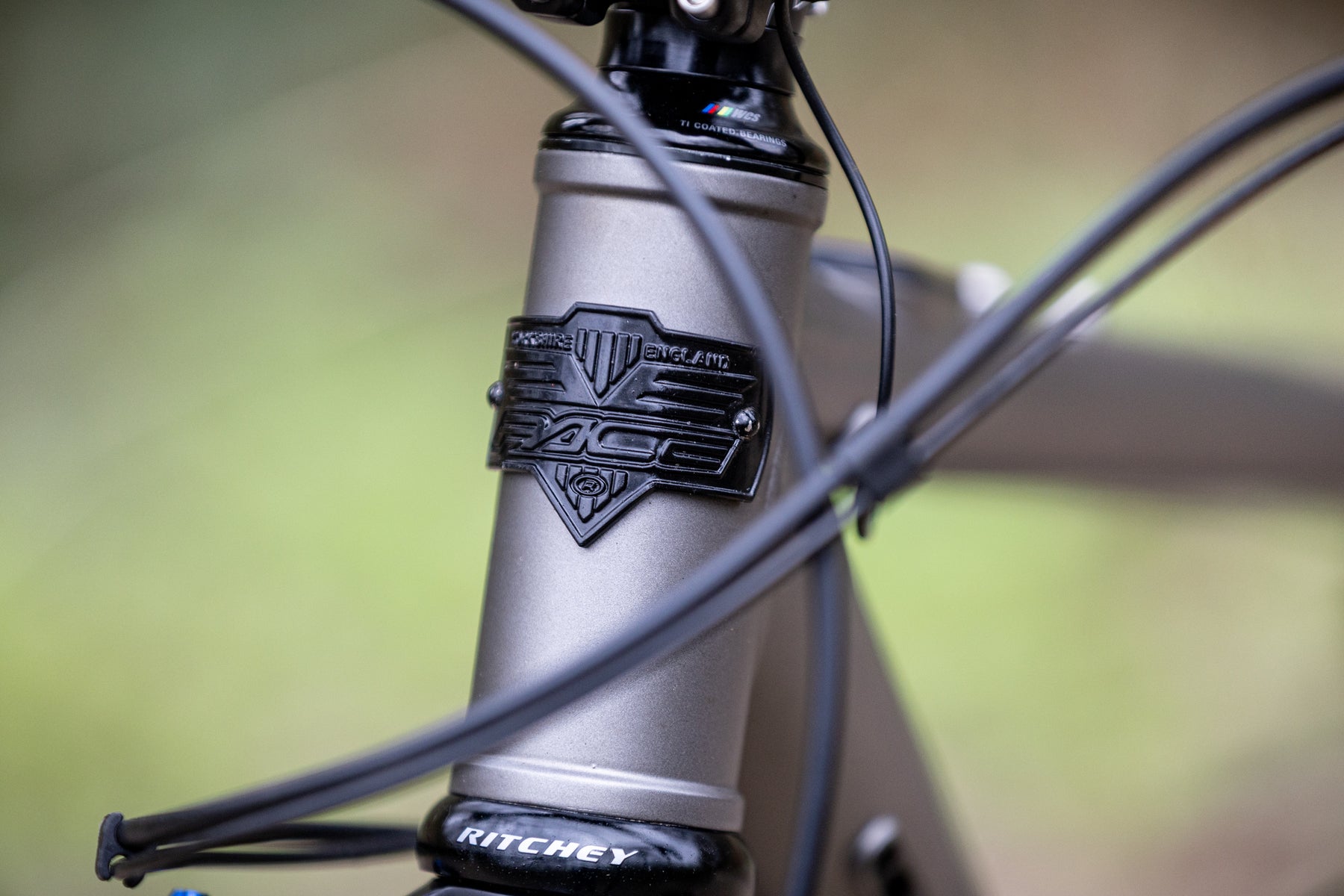

Upper - ZS44 integral. Lower - EC44 external traditional
|
Headset |
| Max 180 on the rear | Rotor size |
|
162 x 12 x 1 thru
|
Axle |
|
29" leaves 6.5mm minimum on 2.6" tyre. Brands may vary
|
Tyre Clearance |
| 34.9 | Seatclamp |
|
Pace custom for MAHLE X20 (replaceable). Concealed built in speed sensor |
Dropouts |
|
Flagship Reynolds 853 top and seat tubes complement the EBike-specific Reydrive downtube, all double-butted for best-in-class weight-to-strength ratios. Pace crafts the integrated headtube, T47 bottom bracket, seat stays, and chain stays to the same exacting standards achieving full Reynolds Certification |
Material |
| 120mm travel. 520mm/44mm offset. Pace RC33 Rigid Fork Compatible | Forks |
|

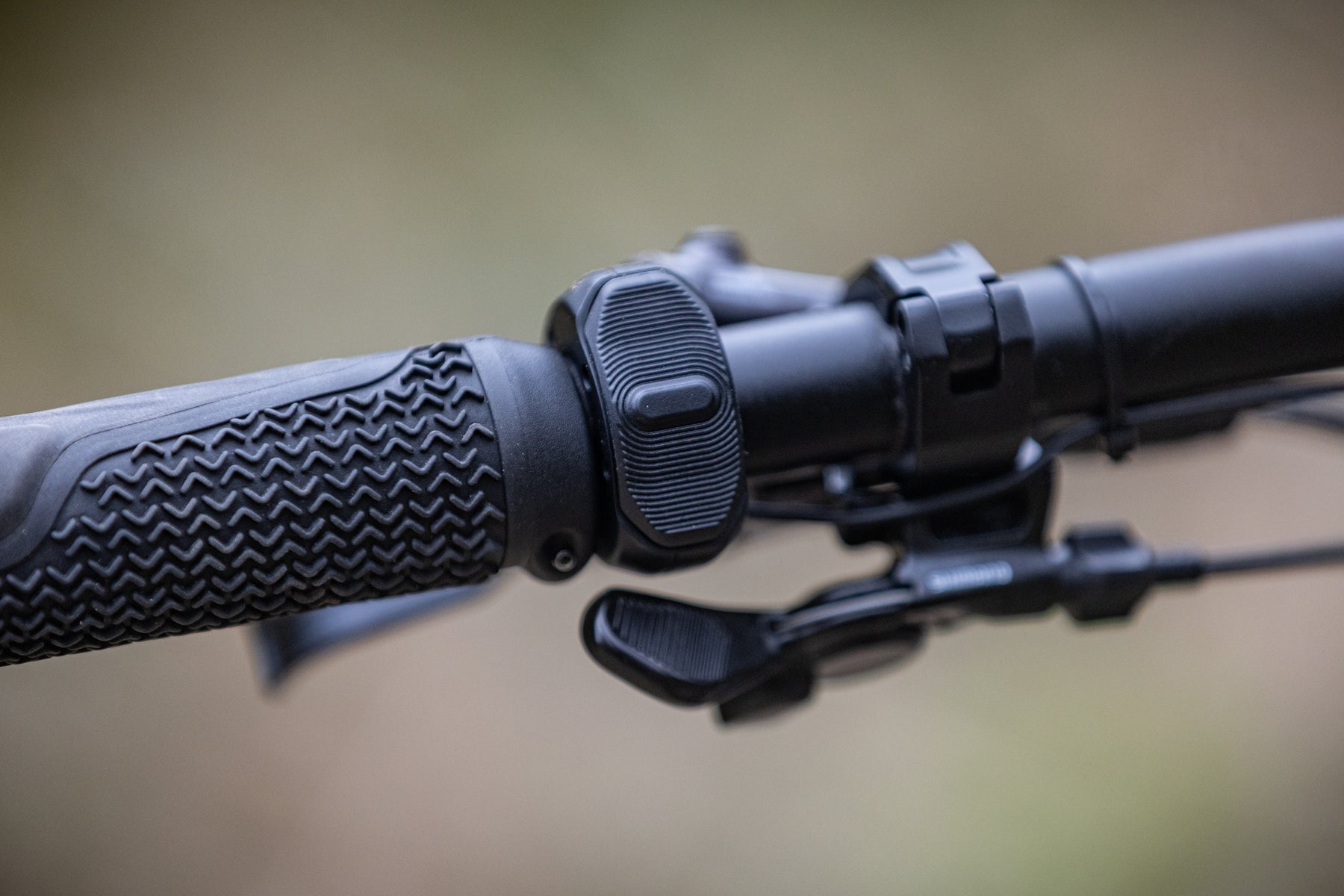

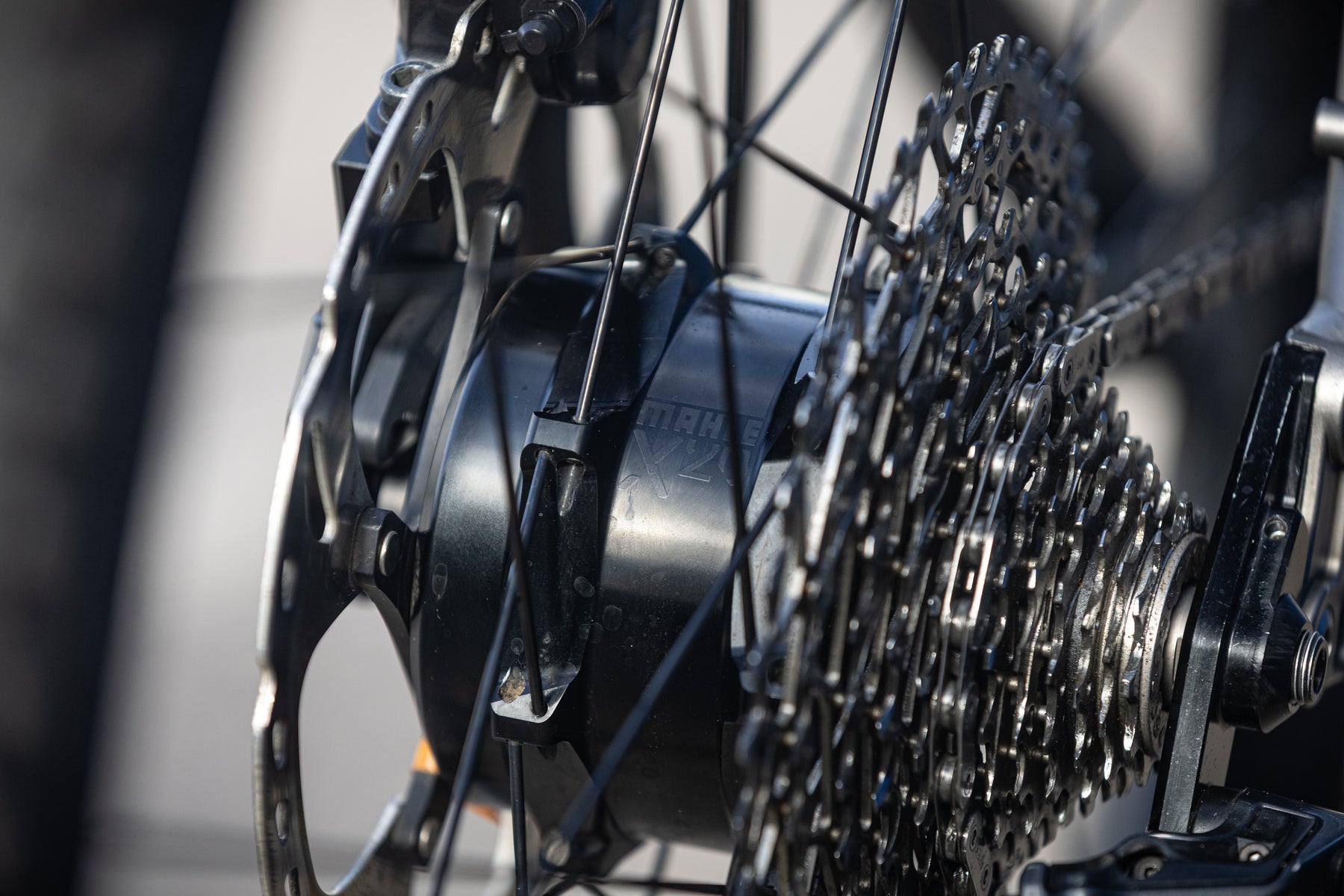

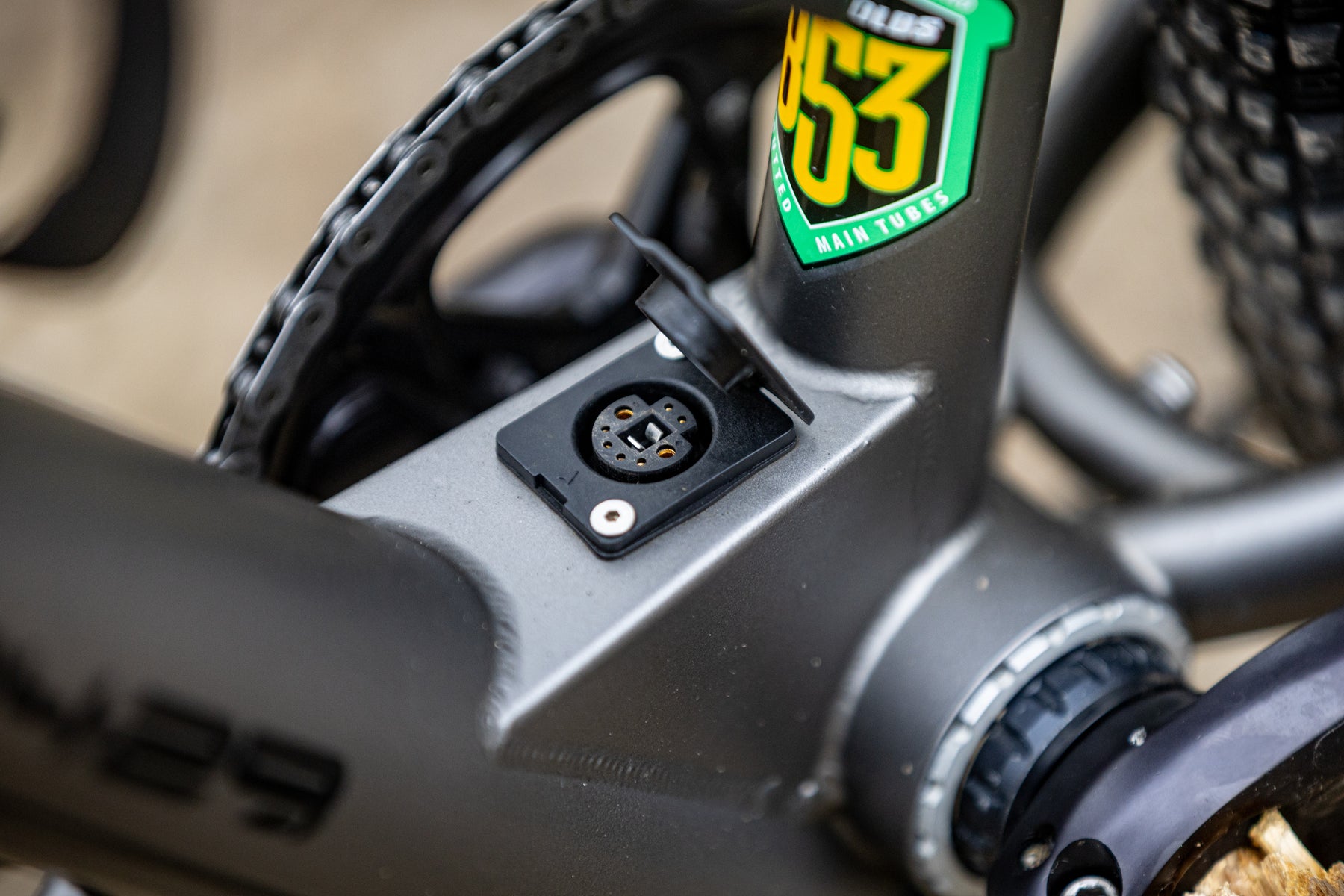

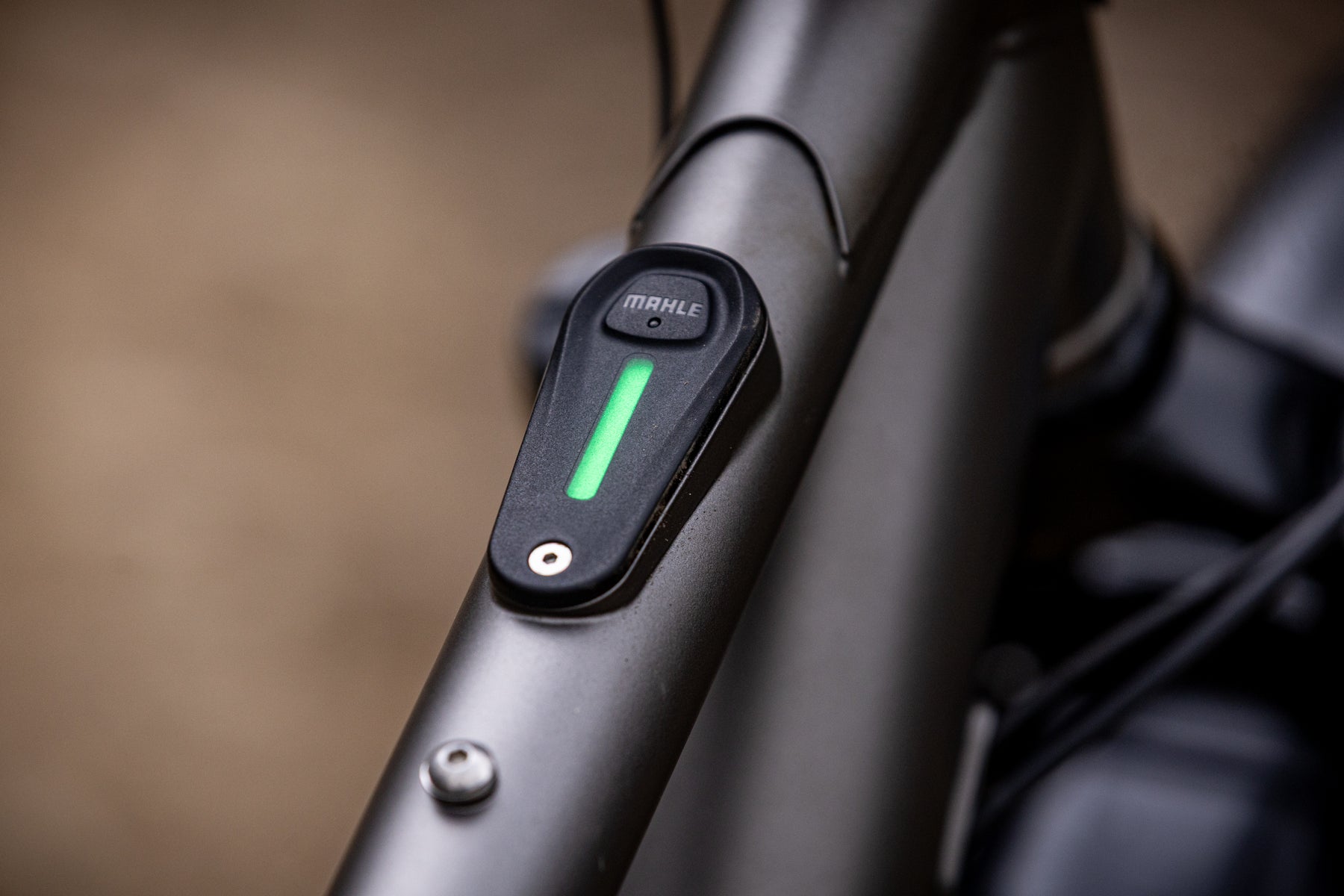

Automatic drive unit connection in rear dropout. Removable 250wh battery / 180wh range extender optional. Aluminium bashguard/ battery removal port. Built in Toptube IWOC display. Sealed charger/range extender port. 65Nm torque/ 275w MAX OUTPUT. IP65 RATED |
System |
| 31.6mm | Seatpost |
| Post Mount 180 Direct | Brake Mounts |
| N/A as frame inc MAHLE system | Weight |
|

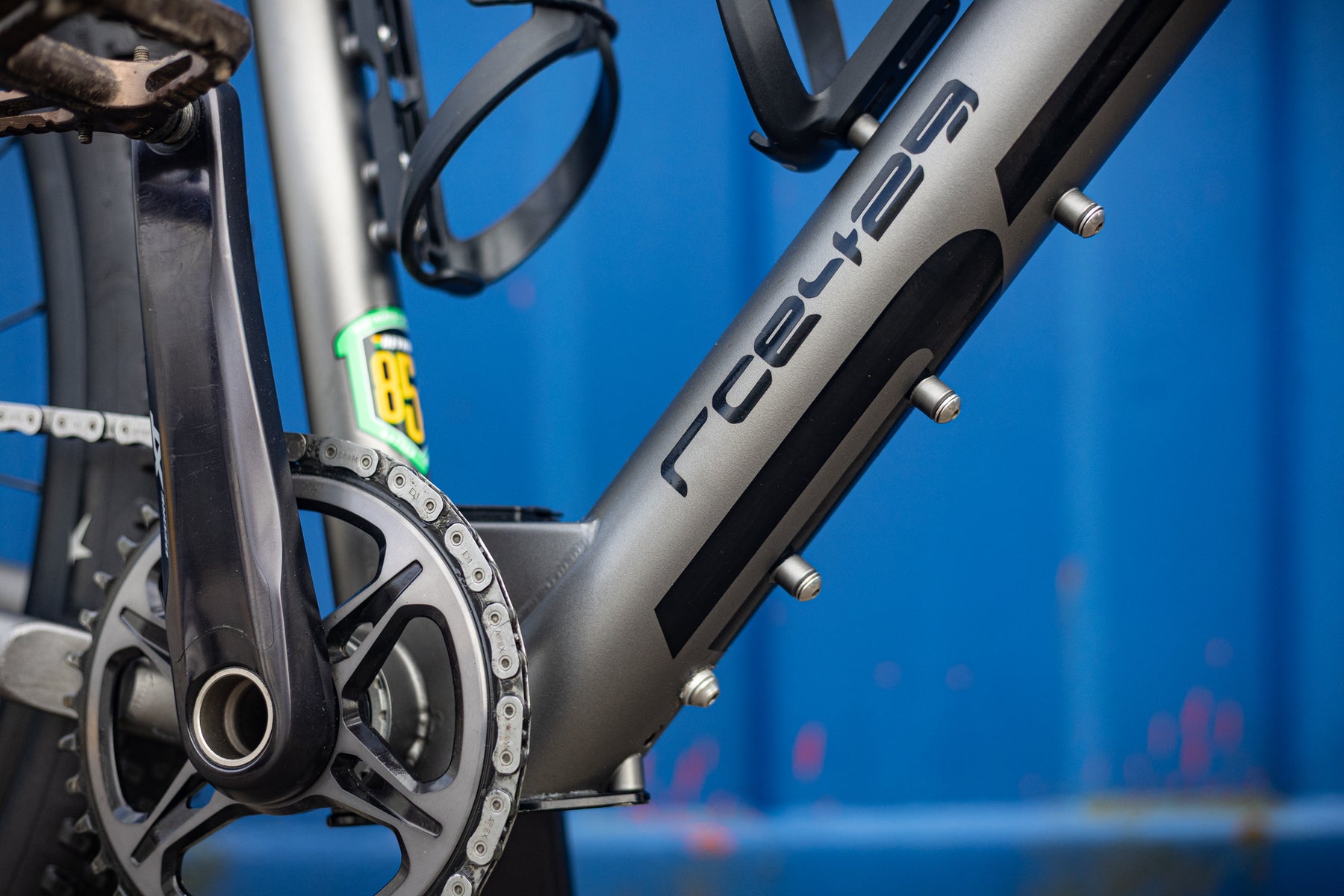

Downtube - 2 above/ 3 underside / Top tube 2 / Seat tube 4 / Chainstay 2 each side stay / Chain stay bridge 1 / Seat stay bridge 1. Note; Seat tube mounts reinforced to support Range Extender Battery |
Frame Mounts |
Geometry ChartGeometry shown with 120mm sagged suspension
All measurements in millimeters unless otherwise stated |
